Digital Static Meter 5740

  • Handheld LCD static measuring device
  • Capable of measuring charges up to 200,000 volts at a distance of 4" away
  • Indicates where and how static is generated, plus magnitude and polarity
  • Enables monitoring of equipment performance
  • This product requires a lead time

Buy Online


Product Details

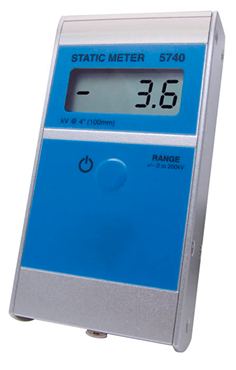

The Model 5740 handheld LCD static meter is the leading instrument in its class, quickly registering negative and positive static electricity charges of up to 200,000 volts, 100 volt resolution, on surfaces at a recommended distance of 4″.

Its excellent accuracy, stability, ease of use and quick response make it an ideal instrument for engineers and quality experts in the analysis of static problems.

Model 5740 enables you to investigate static problems scientifically, showing where and how the static is generated, plus its magnitude and polarity. It further facilitates the most effective positioning of static control equipment and enables you to monitor equipment performance.

The “push button” activates the power, zeros the initial reading and maintains instrument operation for the duration of your testing. The rugged carrying case and easy-to-read crystal display offer extra convenience.

For quantities over 5 units, please contact your Jemmco Inside Service Representative at 262-512-9559.

Technical Specifications

Sensitivity 0-200kV full scale, 100V resolution; 0-20kV full scale, 10V resolution
Drift Less than 1% in 10s at full scale deflection
Accuracy Better than +⁄- 5%
Display 3 1⁄2 digit liquid crystal display of surface voltage in kilovolts at 4" with polarity and "LO BATT" indication
Power Supply 9 volt battery supplied
Dimensions 4.8" x 2.5" x 1"
Weight 6.35 ounces
Case Carrying case supplied
Zero Stability Within 100V on full range
