JemmStat™ Anti-Static Tinsel

  • Cost-effective passive solution to eliminate static
  • Flexible and soft to prevent scratching
  • Fine, sharply pointed copper provides greater static elimination
  • Ideal solution for unwanted static build up in winding, extruding, sheeting, coating and many more operations

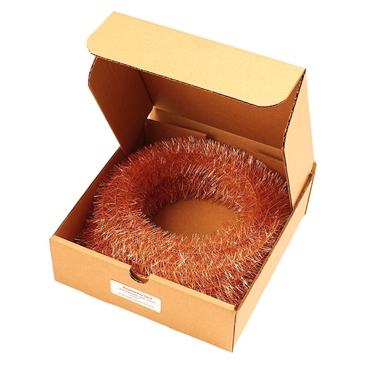

  • Offered in 2 sizes: Box (includes (2) 36' Rolls), Case (12 boxes)

Buy Online

Product Details

Anti-Static Tinsel is a high quality, all-copper solution for reducing unwanted static build up in paper, film and foil converting operations. The anti-static tinsel strands are flexible and soft to prevent scratching or other damage to products. JemmStat™ Tinsel is effective when used on moving webs and conveyors, eliminating both negative and positive charges from static laden product. Tinsel resists breakage, matting and shedding. It is a self-energizing, induction type (no power needed) static eliminator which does not spark or cause sparks, and can be used in hazardous conditions.

  •          Increased product quality rejects decreased by removing the attraction of airborne contaminants
  •          Allows for increased machine speeds by reducing sticking and jamming of product caused by static
  •          Eliminates personnel shock caused by high electro-static charges

The core is made of multiple copper wires (not string) to ensure positive grounding and strength. The fine, sharply pointed copper strands provide greater static elimination. The conductive strands are interspersed to maximize effectiveness, but are not so dense as to make it easy to collect dust and dirt particles.

Technical Specifications

Material 100% copper strands
Core composition Multiple copper wires (not strings) to ensure positive grounding and strength
Outer diameter 1.25" (32 millimeters)
Maximum length - 72' Roll 36 ft (12 meters) - each box consists of (2) 36' coils
Maximum length - 504' Roll 504 ft (165 meters) - each box consists of (1) 504' coil

Positioning Anti-Static Tinsel for Best Results



Position anti-static tinsel 1/8” to 1/4” from static laden surface. Typically, the tinsel will be attached to the machine frame.

It is used most effectively when it does not touch the product or material to be neutralized.

Place the anti-static tinsel just after the points of contact or separation of material from rolls, rollers or guides that generate static electricity. The tinsel should be grounded to machine frame or an electrical ground.

In some cases, especially with when lower static charges are present, the anti-static tinsel may need to actually touch the surface to be neutralized. It can be draped or pulled tight across the material.

Replace the anti-static tinsel when it becomes “dirty” with foreign substances, matted, or oxidized.
