Product Details

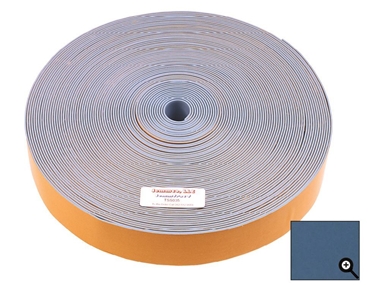

JemmTrac™ T Traction Tape is a non-scratching, non-marring, economical solution to web handling with light tensions. This proprietary material provides a unique tacky surface that will keep rolls turning and prevent them from marking or scratching substrates. JemmTrac™ T Traction Tape is easy to apply, and can be used on existing idler rolls, making it suitable for most applications. JemmTrac™ T offers excellent resistant to esters, alcohols, and water and has good release properties. JemmTrac™ T is a soft durometer material that can be cleaned with water, mix of IPA and water or JemmClean™ TR Treater Roll Cleaning Solution.
Features
- Typically stocked in rolls that are 50 mm wide and 35 meters long
- Wall thickness of 2 mm
- Can be supplied in custom 4 mm or 6 mm thick for applications requiring more cushion
Technical Specifications
| Release Properties |
Fair |
| Traction Properties |
Very Good |
| Heat Resistance |
400°F |
| Wear Resistance |
Good |
| Hardness |
30-40 Shore A |
| Adhesive Type |
Acrylic |
| Surface Finish |
Smooth |
| Wall Thickness |
2 mm |
| Available Widths |
2.0" |
| Available Lengths |
35 m |
| Liner |
Yes |
| FDA Compliant |
No |
Installation
Four Simple Steps for In-Plant Tape Installation!
- 1.
To get started, wrap your Jemmco tape one full rotation around the roller at the angle required to achieve your spiral. Make a mark on the second wrap where it meets the beginning of the tape.
- 2.
Lay the tape on a flat cutting surface and cut the tape at an angle from the marked point to the opposite corner of the beginning of the tape roll.
- 3.
If applicable, remove the liner at the start point and begin wrapping the tape at the edge of the roller.
- 4.
Wrap the tape around the roller - at even angles - without leaving any gaps or air underneath the tape.
