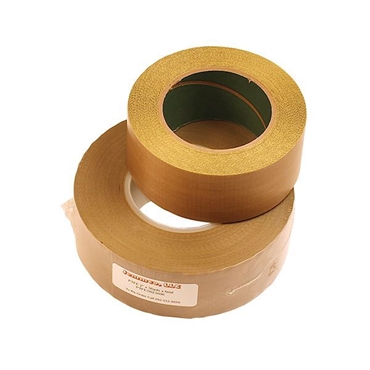

JemmSil™ Fluropolymer (PTFE) Tape

  • Tapes are made with a silicone adhesive backing
  • Ideal for covering heat sealing surfaces on bag sealers
  • Provides excellent release properties and high heat resistance
  • Perfect for guide rails and non-stick roller coverings
Add to Quote

Product Details

Fabricated from PTFE coated woven fiberglass fabric our JemmSil™ tape, belts and fabrics series provide excellent release properties and high heat resistance making them ideal for covering heat sealing surfaces on bag sealers. Our JemmSil™ PTFE Tapes are made with a silicone adhesive backing and are available in a wide range of widths (from ¼” to 36” in width) and thicknesses. They are available in roll lengths 18 yards long and 36 yards long. The low coefficient of friction surface makes this material perfect for guide rails and non-stick roller coverings, as well as for bag sealing and other high temperature applications.

Features

  • Available in a wide range of widths (from ¼” to 36” in width) and thicknesses
  • Available in roll lengths 18 yards and 36 yards long
  • Low coefficient of friction



Technical Specifications

Release Properties Very Good
Traction Properties Poor
Heat Resistance -100°F to 500°F
Wear Resistance Very good
Hardness N/A
Adhesive Type Silicone
Surface Finish Smooth
Wall Thickness 3 mil, 5 mil, 6 mil, 10 mil
Available Widths Custom sizes available (up to 36")
Available Lengths 18 yards, 36 yards
Liner With or without liner
FDA Compliant Available



Available Sizes

  Width (available in 18 or 36 yd)

Thickness

1" 2" 3"
3 mil 1" x 3 mil  2" x 3 mil 3" x 3 mil
5 mil 1" x 5 mil  2" x 5 mil 3" x 5 mil
6 mil 1" x 6 mil 2" x 6 mil 3" x 6 mil
10 mil 1" x 10 mil 2" x 10 mil 3" x 10 mil





Pricing

For pricing, please click Add to Quote above or call us at 262-512-9559.

Installation

Four Simple Steps for In-Plant Tape Installation!

  • 1.Step One Installation

    To get started, wrap your Jemmco tape one full rotation around the roller at the angle required to achieve your spiral. Make a mark on the second wrap where it meets the beginning of the tape.

  • 2.Step Two Installation

    Lay the tape on a flat cutting surface and cut the tape at an angle from the marked point to the opposite corner of the beginning of the tape roll.

  • 3.Step Three Installation

    If applicable, remove the liner at the start point and begin wrapping the tape at the edge of the roller.

  • 4.Step Three Installation

    Wrap the tape around the roller - at even angles - without leaving any gaps or air underneath the tape.
