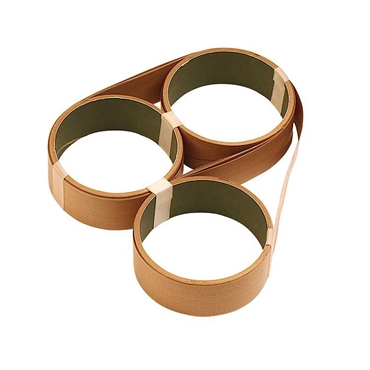

JemmSil™ Fluropolymer (PTFE) Belt

  • Excellent non-stick surface
  • Capable of operating in temperatures ranging from -100°F to +550°F
  • FDA Approved
  • Custom made and available in a wide range of lengths and widths
  • JemmSil™ PTFE Belts are available with endless splices consisting of Overlap, Butt, Step and Finger seams, all manufactured
Add to Quote

Product Details

JemmSil™ Fluropolymer PTFE Belts are used in a wide range of diverse applications. JemmSil™ PTFE Belts feature high temperature resistance and release properties. Typical applications include plastic film extrusion, industrial conveying ovens, heat sealing applications and more.

Fabricated from PTFE coated woven fiberglass fabric our JemmSil™ tape, belts and fabrics series provide excellent release properties and high heat resistance making them ideal for covering heat sealing surfaces on bag sealers. Our JemmSil™ PTFE Tapes are available in a wide range of widths (from 1” to 38” in width) and thicknesses. They are available in custom roll lengths. The low coefficient of friction surface makes this material perfect for guide rails and non-stick roller coverings, as well as for bag sealing and other high temperature applications.

Features

  • Available in a wide range of widths (from 1” to 36” in width) and thicknesses
  • Available in custom roll lengths
  • Low coefficient of friction

Technical Specifications

Release Properties Very Good
Traction Properties Poor
Heat Resistance 500°F
Wear Resistance Very Good
Hardness N/A
Adhesive Type None
Surface Finish Smooth
Wall Thickness 3 mil, 5 mil, 6 mil, 10 mil
Available Widths 1"-38"
Available Lengths Custom
Liner N/A
FDA Compliant Available



Pricing

For pricing, please click Add to Quote above or call us at 262-512-9559.
