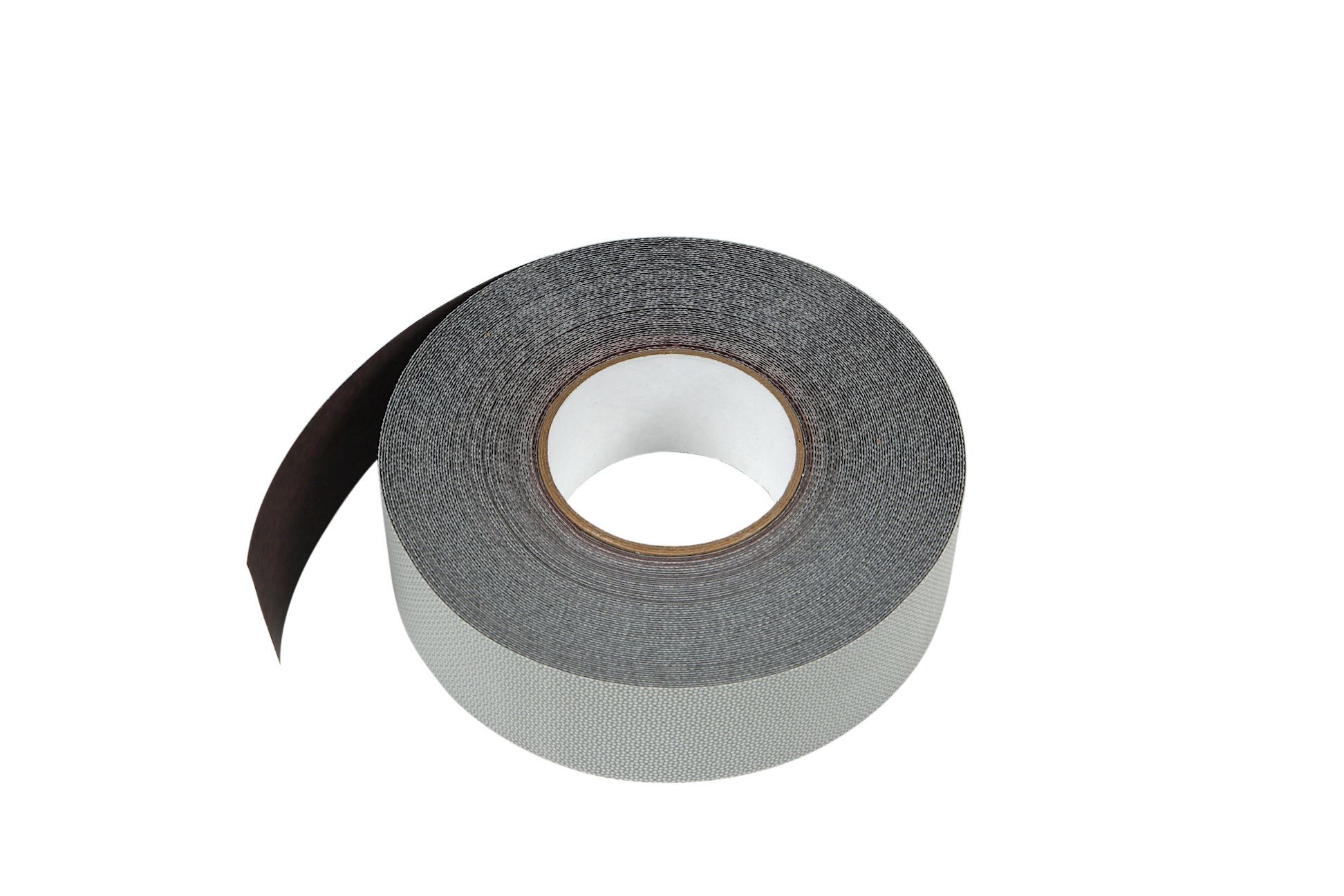

JemmSil™ 4863 Dimpled Release Tape

  • Specifically designed for roller wrapping applications

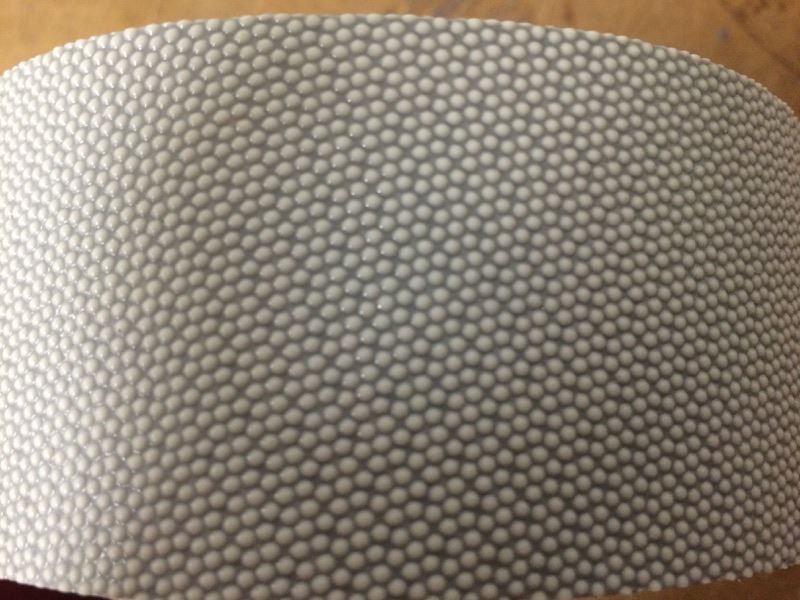

  • Unique, basketball-like skin surface
  • Specially treated fabric covered with a silicone rubber coating
  • Highly resistant to "sticky" substances but provides a reliable "non-slip" effect on smooth substrates

Buy Online

$242.00

Product Details

JemmSil™ 4863 Dimpled Release Tape (Tesa® Printer's Friend® 4863 PV3) is specifically designed for roller wrapping applications. JemmSil™ 4863 Dimpled Release Tape (Tesa® 4863) features a unique, basketball-like skin surface, which provides excellent release properties, as well as outstanding grip capabilities. JemmSil™ 4863 consists of a specially treated fabric covered with a silicone rubber coating.

This embossed surface is highly resistant to "sticky" substances yet provides a reliable "non-slip" effect on smooth substrates. Non-slip properties are maximized and prolonged by the embossed surface. Found in many applications including, printing, coating, lamination, extrusion, slitting and converting, JemmSil™ 4863 Dimpled Release Tape has become the Industry Standard.

Features

  • Highly resistant to stick substances
  • Great non-slip effect
  • Stocked in 2" wide rolls
  • 27.5 yard long rolls
  • Custom widths available upon request



Technical Specifications

Release Properties Good
Traction Properties Good
Heat Resistance 194°F
Wear Resistance Good
Hardness N/A
Adhesive Type Rubber
Surface Finish Dimpled
Wall Thickness 0.63 mm
Available Widths 2.0"
Available Lengths 27.5 yards
Liner Yes (Polypropylene)
FDA Compliant No



Technical Data

Adhesion to steel 3.5 N/cm (32.0 oz/in)
Backing Material Silicone-coated cloth
Total Thickness 620 μm (24.4 mils)
Thickness of Liner 80 μm (3.1 mils)

Installation

Four Simple Steps for In-Plant Tape Installation!

  • 1.Step One Installation

    To get started, wrap your Jemmco tape one full rotation around the roller at the angle required to achieve your spiral. Make a mark on the second wrap where it meets the beginning of the tape.

  • 2.Step Two Installation

    Lay the tape on a flat cutting surface and cut the tape at an angle from the marked point to the opposite corner of the beginning of the tape roll.

  • 3.Step Three Installation

    If applicable, remove the liner at the start point and begin wrapping the tape at the edge of the roller.

  • 4.Step Three Installation

    Wrap the tape around the roller - at even angles - without leaving any gaps or air underneath the tape.
