Product Details

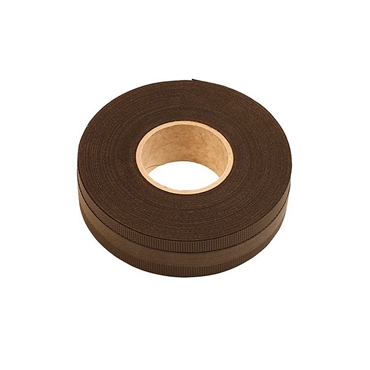

JemmSil™ S-420 Diamond Embossed Release Tape is specifically designed for roller wrapping applications. An economical solution, JemmSil™ S-420 Diamond Embossed Release Tape features a unique, diamond skin-like surface, which provides points for the moving web to ride on, reducing the surface contact of the web with the roller.
The special diamond embossed pattern with non-slip feature and silicone release, produces excellent release properties, as well as outstanding grip capabilities. JemmSil™ S-420 Diamond Embossed Release Tape is produced with a permanent solvent based rubber/resin adhesive system, which provides good adhesion to metal and other roller surfaces. Found in many applications including, printing, coating, lamination, extrusion, slitting and converting, JemmSil™ S-420 Diamond Embossed Release Tape has proven to be the perfect solution to release and grip applications.
Features
- Diamond skin-like surface
- Excellent release properties
- Provides good adhesion to metal and other roller surfaces
- Stocked in 2" wide x 27.5 yards long
- Custom widths available upon request
Technical Specifications
| Release Properties |
Good |
| Traction Properties |
Good |
| Heat Resistance |
176°F (80°C) |
| Wear Resistance |
Good |
| Hardness |
N/A |
| Adhesive Type |
Rubber |
| Surface Finish |
Diamond-Embossed |
| Thickness |
37 mil. |
| Available Widths |
2" |
| Available Lengths |
27.5 yards |
| Liner |
Yes |
| FDA Compliant |
No |
Technical Data
| Adhesion to Steel |
5.5 N/cm (19.8 oz/in) |
| Backing |
Fabric/Spun Rayon |
| Thickness |
37 mil. |
Installation
Four Simple Steps for In-Plant Tape Installation!
- 1.
To get started, wrap your Jemmco tape one full rotation around the roller at the angle required to achieve your spiral. Make a mark on the second wrap where it meets the beginning of the tape.
- 2.
Lay the tape on a flat cutting surface and cut the tape at an angle from the marked point to the opposite corner of the beginning of the tape roll.
- 3.
If applicable, remove the liner at the start point and begin wrapping the tape at the edge of the roller.
- 4.
Wrap the tape around the roller - at even angles - without leaving any gaps or air underneath the tape.
