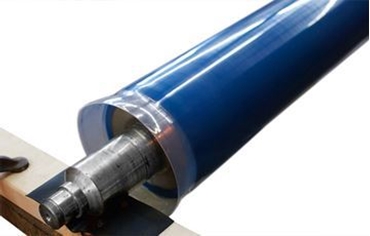

JemmSil™ HS100 Teflon® FEP Heat Shrink Sleeve

  • Excellent release properties
  • Excellent chemical and wear resistance
  • Available in multiple thicknesses and with or without bonding adhesive
  • Easy in-plant installation
Add to Quote

Product Details

JemmSil™ HS100 High Release Teflon® FEP Heat Shrink Coverings offer excellent release properties, excellent chemical resistance and low C.O.F. surfaces, making them ideal for many web processing applications.

Features

  • Excellent release properties
  • Excellent chemical resistance
  • Available in a wide range of diameters
  • Custom-manufactured to fit your roller specifications
  • .020” or .060” wall thicknesses (custom sizes are available ranging from .010” to .125” thick)
  • Etched with adhesive, or unetched without adhesive; enabling them to be used in most roller applications, including nip rolls and idler roll functions
  • Easy to install on-site



Technical Specifications

Release Properties Excellent
Traction Properties Poor
Heat Resistance 350°F
Wear Resistance Excellent
Hardness 96 Shore A
Wall Thickness .020" or .060" (custom thickness available upon request)
Available Diameters Custom up to 15'
Available Lengths Custom
FDA Compliant Yes



Additional Technical Data

Melting Point 500-530°F
Shrinkage Temperature 280°F
Flammability Non-flammable
Ultimate Tensile Strength 3,000 psi
Elongation 250%
% Diameter Change at 250°F 10% minimum

Hardness, 25°C

   P&J Plastomer

   Shore Durometer (A Scale)



17

A96

Machining Qualities Excellent
Clarity Transparent
Wettability (Contact Angle) 108°
Coefficient of Friction 0.2
Effect of All Acids None*
Effect of All Alkalies None*
Effect of All Organic Solvents None*
Water Absorption, 1/8" Thickness <0.01%

*No visible change, pitting or embrittlement in spite of time or temperature

Sleeve Sizing

JemmSil™ HS100 High Release Teflon® FEP Heat Shrink Sleeves are custom-manufactured to fit your roller(s). To determine the appropriate sleeve size to fit your roller and for a quotation, simply click Add to Quote above or contact your Inside Service Representative at 262-512-9559 - or via email at sales@jemmco.com - with your exact roller specifications (diameter and face length).



Sleeve Pricing

JemmSil™ HS100 High Release Teflon® FEP Heat Shrink Sleeves are custom-manufactured to fit your roller(s). For pricing, please click Add to Quote above or call us at 262-512-9559.

Installation

Jemmco's heat shrink sleeves are designed for easy, in-plant installation to reduce time and money spent sending out spare rollers for recovering. Download Jemmco's complete Installation Manual for detailed instructions.
