Product Details
JemmTac™ Web Cleaning Sleeves are an economical approach to clean moving substrates. For about the same cost as a conventional roller regrind, JemmTac™ Web Cleaning Sleeves are the ideal answer to making web cleaning affordable.
This unique, proprietary rubber covering features a soft tacky surface proven to be capable of picking off dirt and contaminants from moving webs without scratching or marring the substrate. The seamless, non-scratching material installs directly over your existing idler for easy and affordable web cleaning.
Ideal for use as a contact web cleaning roll covering and traction applications requiring extra grip
Features
- Seamless design prevents scratching or marring of the moving substrate
- FDA compliant for indirect food contact
- Excellent resistance to ozone, heat buildup and compression set
- Unique surface property, which picks off surface dirt and contaminants from moving substrates
- Made to fit a wide range of roll diameters
- Available in sizes 1" to 8" diameters
- Custom sizes available upon request
- Available in custom lengths up to 10 meters long
- Easily cleaned with IPA and water (50/50 mix)
Technical Specifications
| Release Properties |
Good |
| Traction Properties |
Excellent |
| Heat Resistance |
400°F |
| Wear Resistance |
Good |
| Hardness |
30-40 Shore A |
| Wall Thickness |
2 mm |
| Available Diameters |
1.0", 1.5", 2.0", 2.25", 2.5", 3.0", 3.5", 4.0", 4.5", 5.0", 5.5", 6.0", 7.0", 7.5", 8.0" |
| Available Lengths |
Up to 10 meters |
| FDA Compliant |
Yes |
Sleeve Sizing Chart
| Diameter |
Relaxed ID |
Wall Thickness |
Roller Diameter Range |
| 1" |
25.4mm |
2mm |
25.4mm-31.75mm |
| 1.5" |
29mm |
2mm |
35.56mm-45.72mm |
| 2" |
38mm |
2mm |
48.26mm-60.96mm |
| 2.25" |
43mm |
2mm |
55.88mm-66.04mm |
| 2.5" |
48mm |
2mm |
60.69mm-73.66mm |
| 3" |
57mm |
2mm |
73.66mm-86.36mm |
| 3.5" |
67mm |
2mm |
86.36mm-99.06mm |
| 4" |
74mm |
2mm |
99.06mm-113.03mm |
| 4.5" |
86mm |
2mm |
111.76mm-124.46mm |
| 5" |
98mm |
2mm |
124.46mm-137.16mm |
| 5.5" |
111mm |
2mm |
137.16mm-147.32mm |
| 6" |
124mm |
2mm |
149.86mm-163.83mm |
| 7" |
132mm |
2mm |
175.26mm-187.96mm |
| 7.5" |
136mm |
2mm |
187.96mm-200.66mm |
| 8" |
140mm |
2mm |
200.66mm-218.44mm |
*To calculate sleeve length, simply add 10% to the face length of your roller.

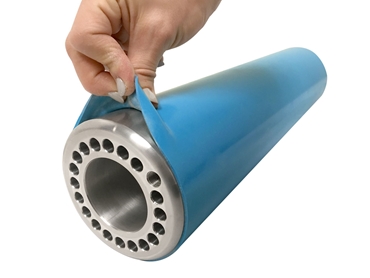

Installation
Jemmco's rubber sleeves are designed for easy, in-plant installation to reduce time and money spent sending out spare rollers for recovering.
Three Simple Steps for In-Plant Sleeve Installation!
- 1.
Slide Sleeve over the edge of the roller.
- 2.
Insert air nozzle under sleeve, inflate sleeve and pull down to cover roller.
- 3.
Trim the sleeve to the edge and violà!
