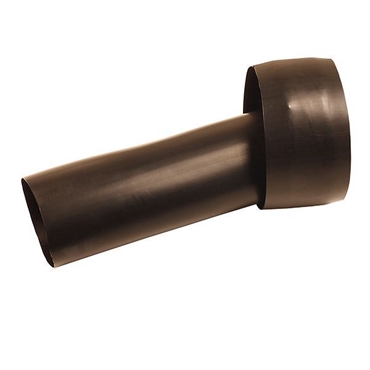

JemmStat™ CHS100 Conductive Heat Shrink Sleeve

  • Excellent release properties, chemical resistance, wear resistance, and anti-static features
  • A bondable heat shrink covering, supplied with application-specific adhesive
  • Proven to last at least 4-10 times longer than standard FEP heat shrink sleeves
  • Can withstand continuous operating temperatures up to 400°F and short periods up to 550°F
Add to Quote

Product Details

JemmStat™ CHS100 High Release, Conductive PTFE Heat Shrink Coverings offer excellent release properties, chemical resistance, wear resistance, and anti-static features making them ideal for many web processing applications.

Common applications include idler rolls on coating and laminating lines, printing press idler rolls, slitting lines, foil processing lines, papermaking on bowed roll covers and more.

Technical Specifications

Release Properties Excellent
Traction Properties Poor
Heat Resistance 350°F
Wear Resistance Excellent
Hardness 96 Shore A
Wall Thickness .060" (custom thickness available upon request)
Available Diameters Custom up to 15'
Available Lengths Custom
FDA Compliant Yes



Physical Properties

Diameter Range 5” to 15’
Thickness Range .060”
Ultimate Tensile Strength 3000 psi
Elongation 100% ASTM D882-61T
% Diameter Shrinkage @ 300ºF 10% minimum D882-61T
Flammability Non-Flammable ASTM D635
C.O.F. (against wet polished steel) .04-.08
Color White



Chemical Properties

Effects of all acids None
Effects of all alkalies None
Effects of all organic solvents None
H²O absorption, 1/8” thickness <0.01%



Electrical Properties

Surface Resistivity 107-109 ohms/sq. in.

Sleeve Sizing

JemmStat™ CHS100 High Release, Conductive PTFE Heat Shrink Coverings are custom-manufactured to fit your roller(s). To determine the appropriate sleeve size to fit your roller and for a quotation, simply fill out Jemmco's Online Inquiry Form or contact your Inside Service Representative at 262-512-9559 - or via email at sales@jemmco.com - with your exact roller specifications (diameter and face length).



Sleeve Pricing

JemmStat™ CHS100 High Release, Conductive PTFE Heat Shrink Coverings are custom-manufactured to fit your roller(s). For pricing, please click Add to Quote above or call us at 262-512-9559.

Installation

Jemmco's heat shrink sleeves are designed for easy, in-plant installation to reduce time and money spent sending out spare rollers for recovering. Download Jemmco's complete Installation Manual for detailed instructions.
